Types of G Type Fin Tubes

2025 10/28

Finned tubes are widely used in many industrial applications due to their excellent heat exchange performance. In particular, in equipment such as boilers, heat exchangers, and air coolers, finned tubes help improve thermal efficiency. This article will focus on the most common type of finned tube: G-type finned tubes.





I. What is G Type Fin Tube?



G-type finned tubes are finned tubes in which the fins are mechanically connected to the base tube (e.g., fin wrapping and inlaying). The fins of G-type finned tubes typically have a high surface area and are shaped like a "G." This design increases the contact area with the fluid and improves heat exchange efficiency.



Compared to traditional finned tubes, “G” Type Fin Tubes offer enhanced heat dissipation and higher thermal efficiency. They are commonly used in equipment requiring large heat dissipation areas, such as air coolers, condensers, and cooling towers. Their advantages include a simple manufacturing process and a more stable connection between the fins and the base tube, which helps reduce production costs. Furthermore, G-type finned tubes offer high heat transfer efficiency and are suitable for milder operating environments.





II. Types of G Type Fin Tubes




1. Carbon Steel “G” Type Fin Tube


Base Tube: ASTM A106, A179, A210, or equivalent carbon steel grade.
Fin Material: Aluminum, copper, or carbon steel.
Applications: Boilers, economizers, and heat recovery systems.
Features: High strength, excellent thermal conductivity, and cost-effective for high-temperature environments.

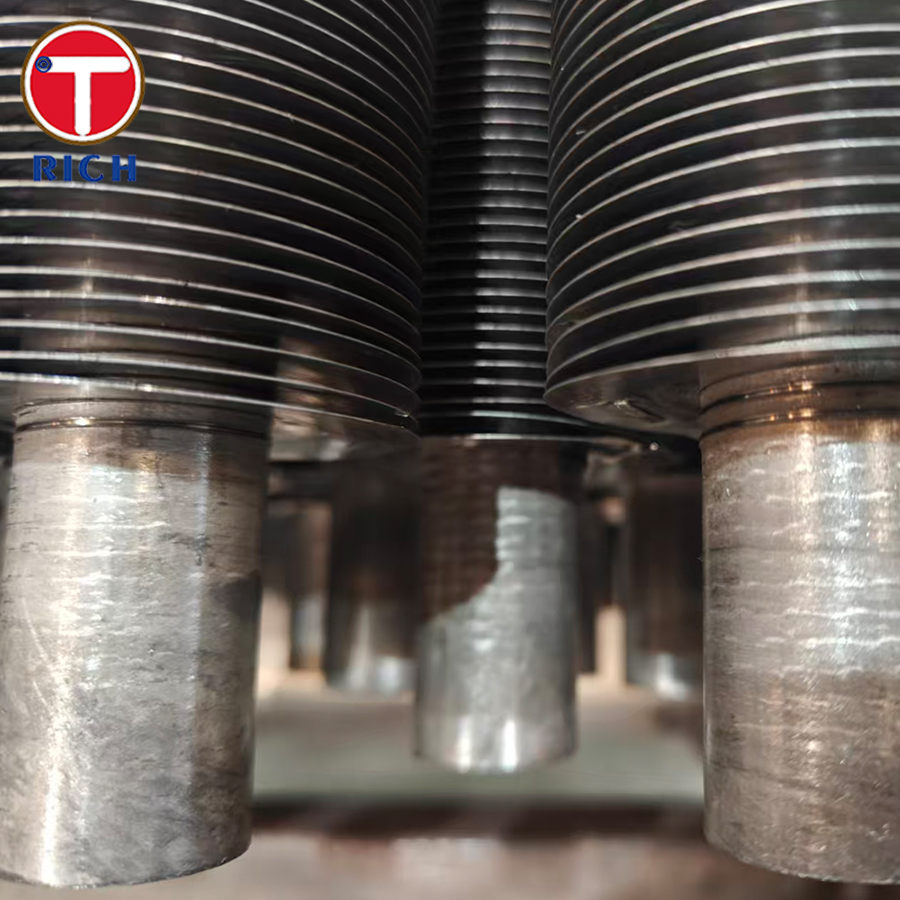

G-Type Finned Tube SA179 (3)





2. Stainless Steel “G” Type Fin Tube


Base pipe: ASTM A213 TP304, TP316, TP321, TP347, etc.
Fin material: Stainless steel or aluminum.
Application: Corrosive environments such as marine, chemical, and food industries.
Features: Excellent corrosion and oxidation resistance, long service life.



3. Alloy Steel “G” Type Fin Tube


Base Tube: ASTM A213 T11, T22, T91, etc.
Fin Material: Carbon Steel or Stainless Steel
Application: High-temperature and high-pressure boilers and superheaters
Features: Excellent creep resistance and thermal stability.



4. Copper “G” Type Fin Tube


Base Tube: C10200, C12000, C12200 (ASTM B75/B280).
Fin Material: Copper or Aluminum.
Applications: Air conditioning, condensers, and refrigeration systems.
Features: Excellent heat transfer efficiency and corrosion resistance in low-pressure systems.



6. Titanium “G” Type Fin Tube


Base Tube: ASTM B338 Gr. 2, Gr. 12, Gr. 7, etc.
Fin Material: Titanium or Aluminum
Applications: Desalination, marine, and chemical processing industries
Features: Excellent corrosion resistance in chloride-containing and high-humidity environments.



7. Aluminum “G” Type Fin Tube


Base Tube: Aluminum or aluminum alloy.
Fin Material: Aluminum.
Application: Air cooling and HVAC systems.
Features: Lightweight, low cost, and excellent thermal conductivity.

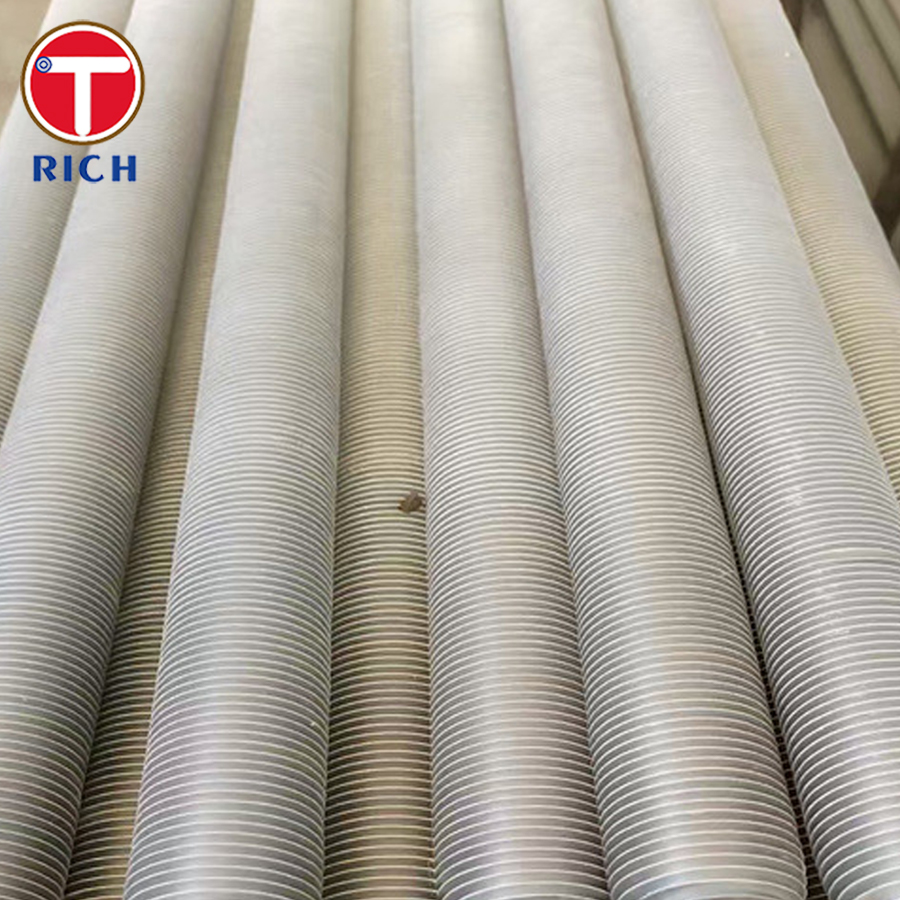

G Fin Tubes
